LiftMaster 98022

Overview

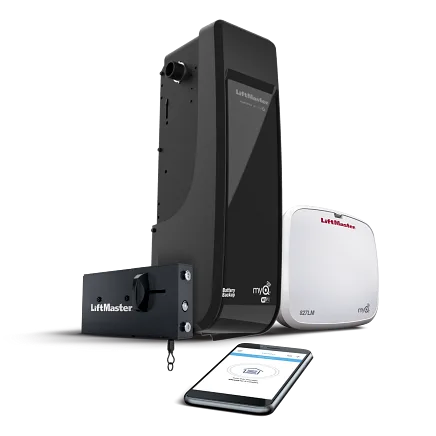

LiftMaster's 98022 is a wall-mount jackshaft opener powered by a DC motor. It attaches to the wall beside the garage door and connects directly to the torsion spring shaft, which means no overhead rail runs across the ceiling. The unit lifts doors up to 850 lbs and ships with one 485LM battery backup unit, myQ Wi-Fi connectivity, and Security+ 2.0 rolling-code encryption.

The 98022 and its larger sibling, the 98032, fill the same role: wall-mount openers for homeowners who want ceiling clearance and smart connectivity. The 98022 covers most standard and moderately heavy residential doors, while the 98032's dual-battery configuration and higher upper weight limit suit heavier custom doors and more demanding outage scenarios. For the majority of residential garage door applications, the 98022's 850 lb rating is more than sufficient.

Wall-mount openers appeal to homeowners with finished garages, workshop spaces, garages with low or unusual ceilings, and anyone who values a clean installation without hardware running across the ceiling. The 98022 delivers all of that along with the features homeowners now expect from a connected opener.

Drive type, motor, and power

The 98022 is a wall-mount (jackshaft) opener. It bolts to the header wall beside the garage door and attaches to the torsion spring shaft via a drive hub. When the motor runs, it turns the torsion spring shaft directly, which winds or unwinds the springs and raises or lowers the door. The door operates the same way it always has. The opener just replaces the hand effort of lifting.

The DC motor provides smooth, quiet operation. Soft-start and soft-stop cycles cushion each operation, which reduces impact on the torsion springs, drums, cables, and hinges at the beginning and end of every cycle. Over years of daily use, this reduces wear on the door's mechanical components.

The rated lift capacity of up to 850 lbs covers single-car and double-car residential doors in most configurations. Standard 16x7 double-car doors with basic insulation typically weigh between 100 and 200 lbs. Even heavily insulated doors or doors with decorative hardware usually remain well under 500 lbs. The 850 lb rating gives the 98022 a large safety margin for normal residential use.

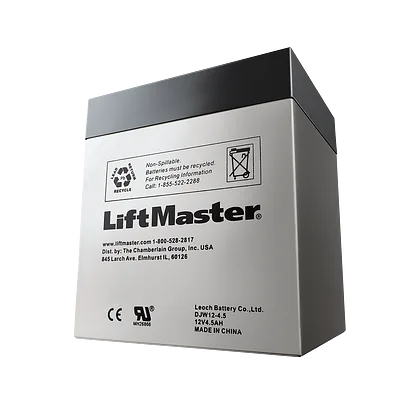

One 485LM battery is included. When power goes out, the opener switches to battery power automatically and continues to operate the door. The number of cycles available on battery power depends on the door's weight and the battery's charge level. For typical Colorado outages lasting a few hours, this provides adequate backup operation.

Smart features, security, and safety

The 98022 includes built-in myQ Wi-Fi. The myQ app (iOS and Android, free) connects to the opener over your home network and gives you remote open and close control, real-time door status, activity alerts, and scheduled closing reminders. Google Assistant, Amazon Alexa, and Apple HomeKit (via myQ Home Bridge) are all supported.

Security+ 2.0 rolling-code technology is standard. The code that the remote or wireless keypad sends to the opener changes automatically after every use. Even if someone captures the signal, the code will not work again.

The 98022 meets UL 325 safety requirements. It works with standard photo-eye sensors at the base of the door opening. If an obstruction breaks the sensor beam while the door is closing, the door stops and reverses. The opener also includes a force-sensing reversal that stops the door if it meets unexpected resistance.

Because this is a wall-mount opener with no overhead rail, the torsion spring system does all the heavy lifting, as it normally would. The opener just provides the power to move the springs. This design means the opener is not under load in the same way a rail-mounted trolley system is. It also means the garage ceiling stays completely clear.

Specifications at a glance

Specification	Detail
Drive type	Wall mount (jackshaft)
Motor type	DC
Lift capacity	Up to 850 lbs
Battery backup	Yes (one 485LM battery included)
myQ / Wi-Fi	Yes (built-in)
Security+ 2.0	Yes
UL 325 photo-eye sensors	Yes (compatible)
Soft start / soft stop	Yes (DC motor)
Motor warranty	Lifetime
Parts warranty	5 years
Battery warranty	1 year

Is this the right opener for you, and how G Brothers helps

The LiftMaster 98022 suits homeowners who want a ceiling-clearing installation with smart control and battery backup, without needing the dual-battery configuration of the 98032. For homes with standard to moderately heavy doors and normal outage frequency, the 98022 covers the need cleanly.

This opener is a good fit for:

Homes with finished or multi-use garages. A wall-mount opener removes the overhead rail entirely, which opens the ceiling for storage, equipment, or a cleaner finished look. Many homeowners converting their garage to a living or workshop space prefer this configuration.

Garages with limited headroom. Some garage doors and ceiling configurations leave very little room for a standard opener rail and motor. A wall-mount opener mounts to the side wall and requires no ceiling clearance at all.

Homeowners who want battery backup on a wall-mount unit. Battery backup is not universal on wall-mount openers. The 98022 includes it, which means power outages do not lock the door.

Standard residential doors. Single-car and double-car doors in typical sizes and materials are well within the 98022's 850 lb capacity.

If your door is extremely heavy, such as a solid wood carriage-house door, consider comparing the 98022 with the 98032, which handles up to 1,100 lbs and includes two batteries.

The 98022 is part of LiftMaster's wall-mount family, which appeals to homeowners who want a finished, uncluttered garage ceiling. Without an overhead rail and motor hanging from the ceiling, the garage looks cleaner. Ceiling fans, storage systems, and vehicle hoists can be installed without working around the opener rail.

Installation of the 98022 requires attention to the torsion spring shaft setup. The shaft must be the right size and in good condition. If the spring system is old or out of adjustment, it should be serviced before the wall-mount opener goes in. G Brothers evaluates the door system as part of every installation to confirm everything is aligned and in good mechanical condition before the opener is mounted.

G Brothers Garage Doors installs and services the LiftMaster 98022 across the Denver metro. Wall-mount opener installation is more involved than a standard rail system. The torsion spring shaft must be the right size and in good condition. Our technicians handle the complete installation: shaft hub attachment, battery setup, sensor placement, and myQ configuration. Contact G Brothers for a free estimate and to verify the 98022 is compatible with your door and spring system.

The LiftMaster 98022 carries a lifetime motor warranty, a 5-year parts warranty, and a 1-year battery warranty. The lifetime motor term is strong coverage for a wall-mount jackshaft opener. The 485LM battery will need replacement over time, typically every few years depending on how often the door cycles on battery power. G Brothers can assist with battery replacement and service calls after installation.

Wall-mount openers require a professional installation. The shaft hub must match the torsion spring shaft diameter. The wall bracket must be anchored into structural framing. These are not optional details. They determine whether the opener runs safely for years or fails early. G Brothers installs every wall-mount unit to LiftMaster spec and inspects the spring system first.
